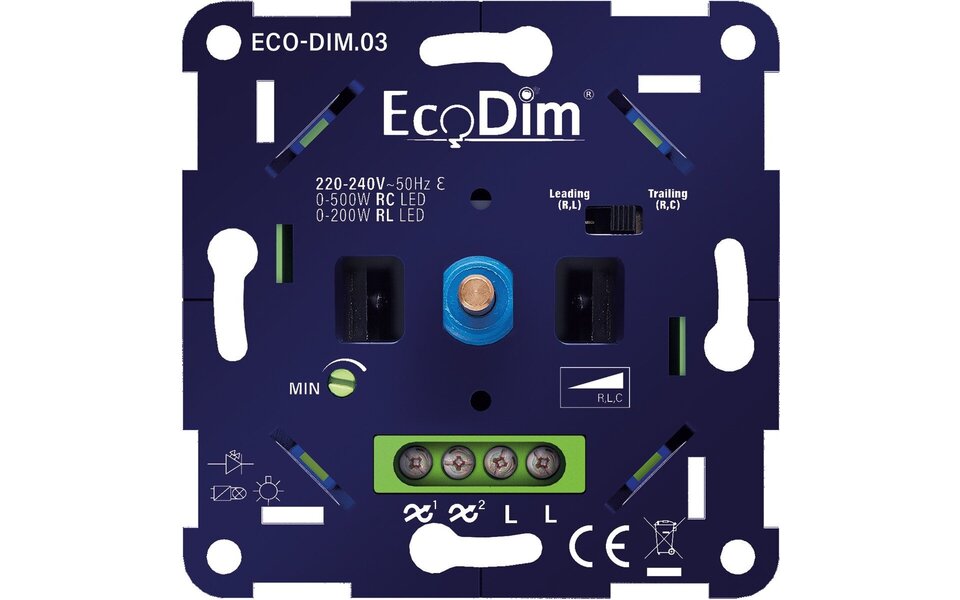

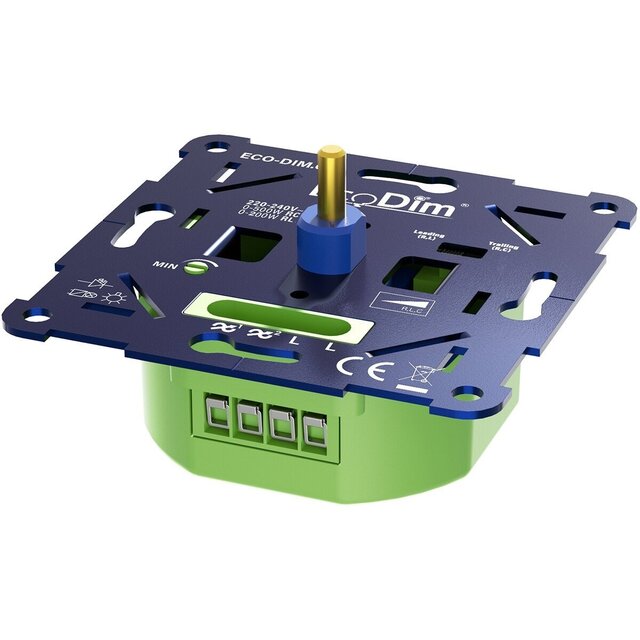

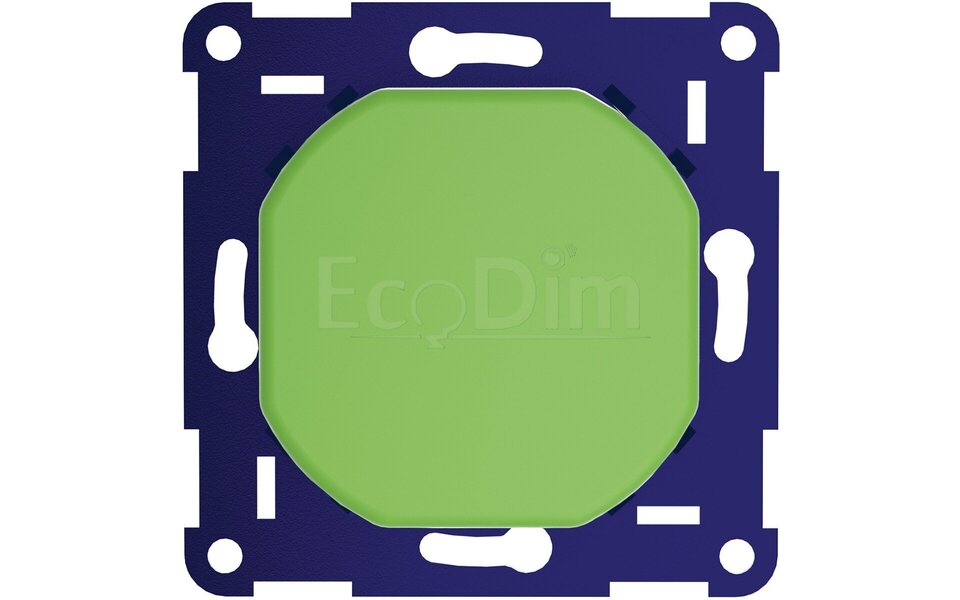

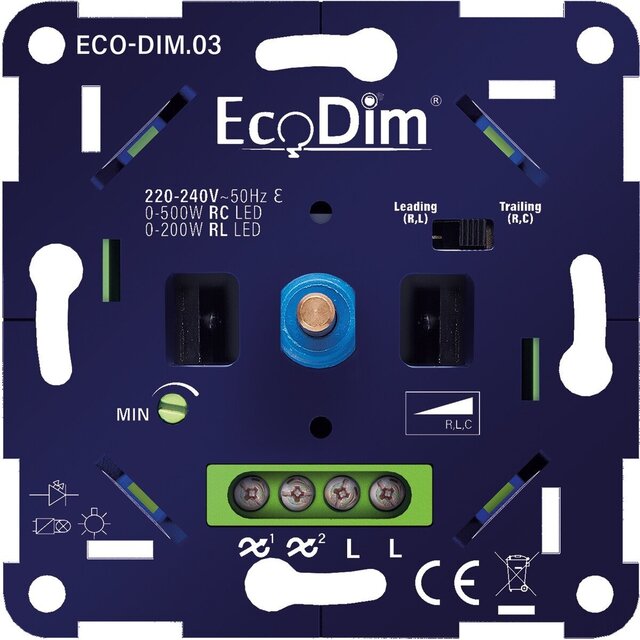

EcoDim LED Dimmer 0–500W | Silent built-in dimmer

The EcoDim LED Dimmer 0-500W is the ideal dimmable LED switchgear for smooth, silent dimming of all your LED lights thanks to support for leading edge and trailing edge dimming. With a generous power rating of 0–500W (LED RC) / 200W (LED RL), soft start and adjustable MIN/MAX, you can prevent flickering and extend the life of your lamps — perfect for mood lighting and immediate energy savings in your home.

The compact dimmer (71×71×22 mm) has a shallow installation depth and is easy to install in standard flush-mounted boxes. Built-in overvoltage, short-circuit, and overheating protection and compatibility with A-brand cover material and changeover and cross-connection make installation safe and reliable — ideal for both DIYers and professionals. Order now and upgrade your lighting immediately.

Key features

• Power: 0–500W (LED RC) / 200W (LED RL)
• Dimming technology: Phase cut-on and phase cut-off (RLC/RC/RL)
• Dimensions / installation depth: 71×71×22 mm — compact installation depth, suitable for standard flush-mounted boxes
• Protection: Built-in overvoltage, short-circuit, and overheating protection
• Operation & fine adjustment: Push/turn knob with soft start and adjustable MIN/MAX to prevent flickering
• Voltage & compatibility: 220–240V, 50/60Hz — compatible with two-way/cross switching and A-brand cover material

Energy savings

With precise and silent dimming control, the EcoDim LED Dimmer instantly reduces the energy consumption of connected lamps. Thanks to support for phase cut-in and cut-off and the wide control range of 0–500W (LED RC) / 200W (LED RL), you can set lighting to the desired level without using unnecessary power. This results in noticeable savings on your energy bill, especially in living rooms, kitchens, and commercial spaces where ambiance and hours of use vary.Extend lifespan The built-in soft-start mechanism limits inrush currents and prevents sudden voltage surges that stress LEDs and transformers. Adjustable MIN/MAX values allow you to eliminate flickering and unnecessary stress on lamps, extending the life of filaments and electronics. In addition, overvoltage, short-circuit, and overheating protection provide extra protection against malfunctions and damage, resulting in fewer failures, lower replacement costs, and a more reliable lighting system in the long term.

Easy installation

With compact dimensions (71×71×22 mm) and a shallow installation depth, the dimmer fits effortlessly into standard flush-mounted boxes and A-brand cover material, simplifying installation for both professionals and DIYers. Compatibility with two-way and cross switches and 220–240V power supply makes integration into existing systems quick and reliable. The user-friendly push/turn knob and clear settings ensure direct operation and minimal adjustment work during installation.
