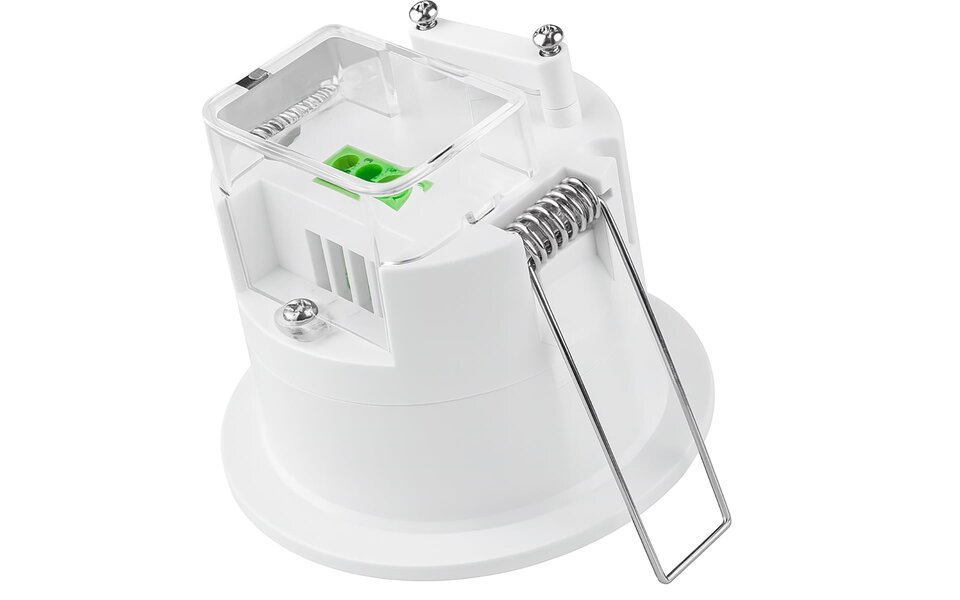

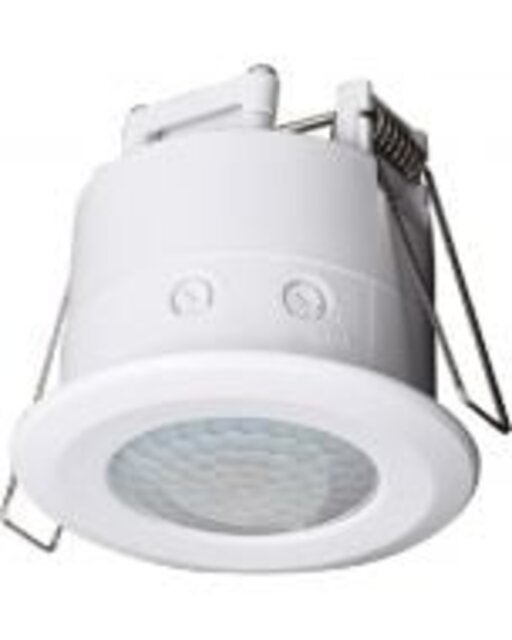

Recessed Microwave Motion Sensor IP54 Ø76mm 1200W – LED Accessories with 360° Detection

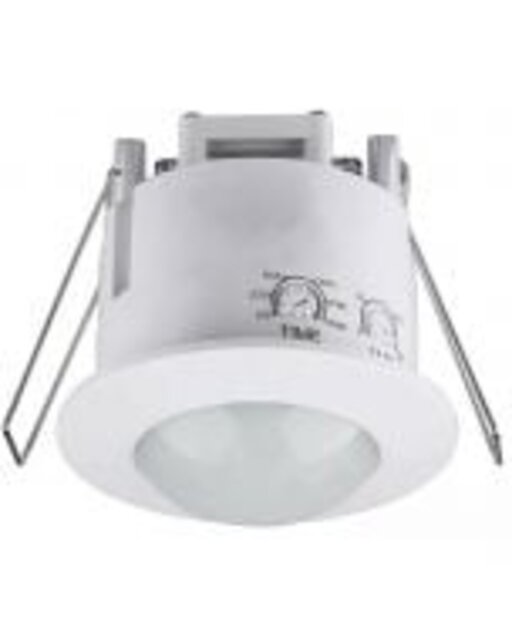

The Prixa Sense built-in microwave motion sensor is designed for discreet integration into ceilings. With a 360° detection range and an effective range of up to 8 meters, this sensor accurately detects movement from all directions and automatically switches on lighting at minimal movement.

Brief specifications

• Detection range: 360° all around
• Range: up to 8 meters
• Microwave frequency: 24 GHz (CW radar)
• Adjustable light sensitivity: 3–2000 LUX
• Adjustable follow-up time: 10 seconds to 12 minutes
• Maximum switching capacity: 1200 W
• Power supply range: 110–240 V AC, 50/60 Hz
• Mounting height: 2–4 meters
• Protection class: IP54 (dust and splash-proof)

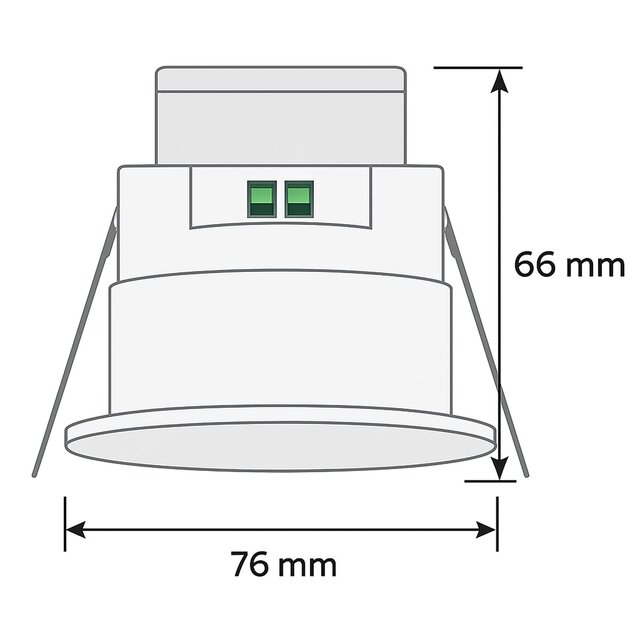

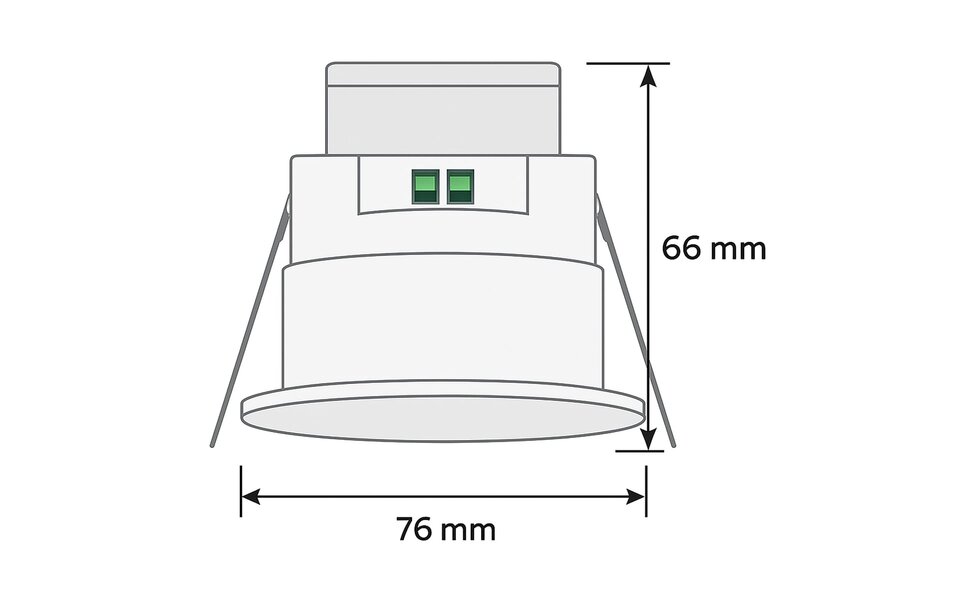

• Dimensions: Ø76 × 66 mm

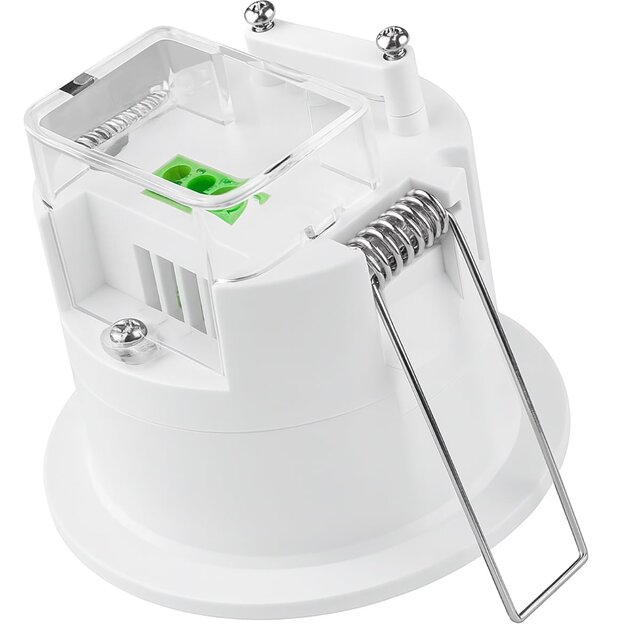

• Recess: Ø76 mm
• Housing material: durable plastic

Compact and unobtrusive design

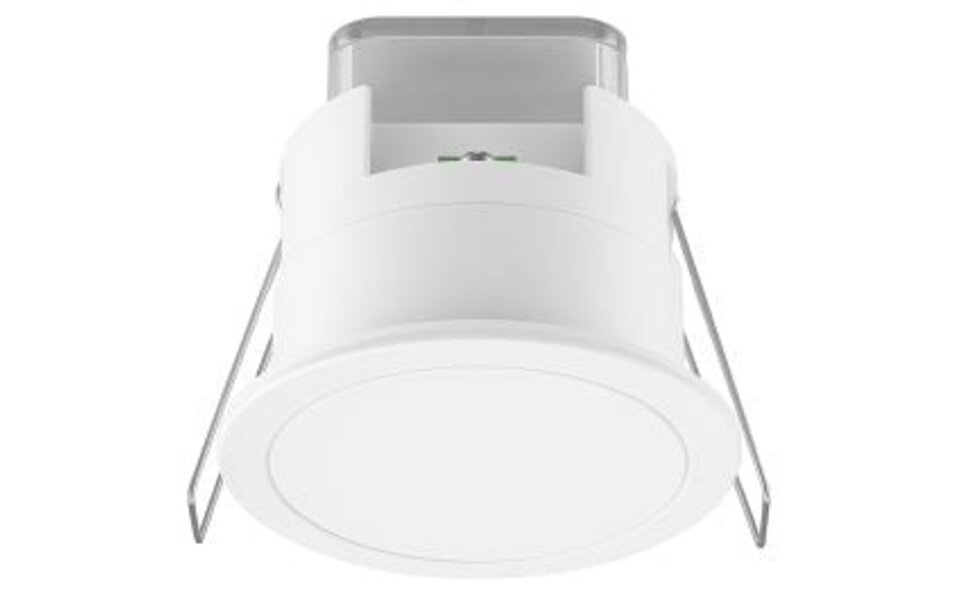

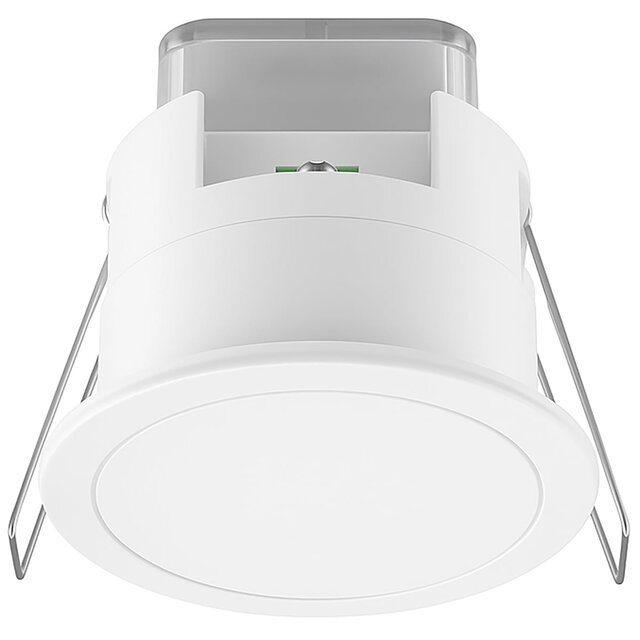

The sensor has a round, compact design with a diameter of 76 millimeters, allowing it to be easily installed in ceilings. This ensures a neat and unobtrusive installation that fits into any interior.

Advanced detection technology

Thanks to 24 GHz microwave technology with CW radar, the sensor detects not only visible but also subtle movements. This makes it more reliable than traditional infrared sensors, even in dark rooms or behind light obstacles.

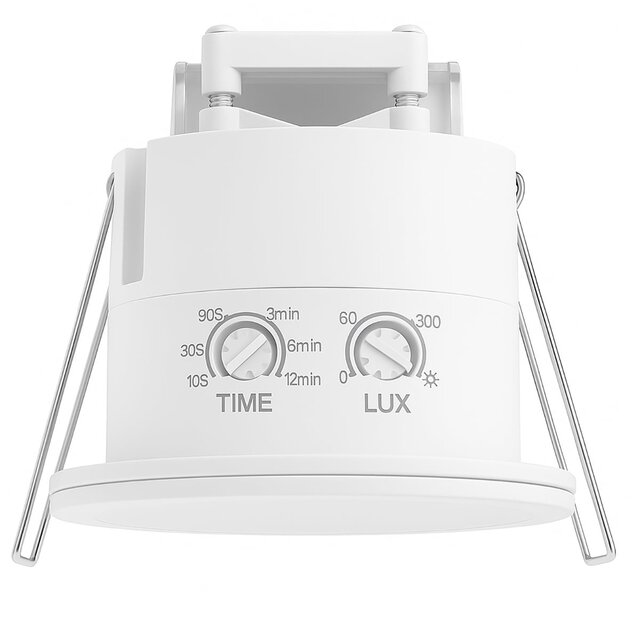

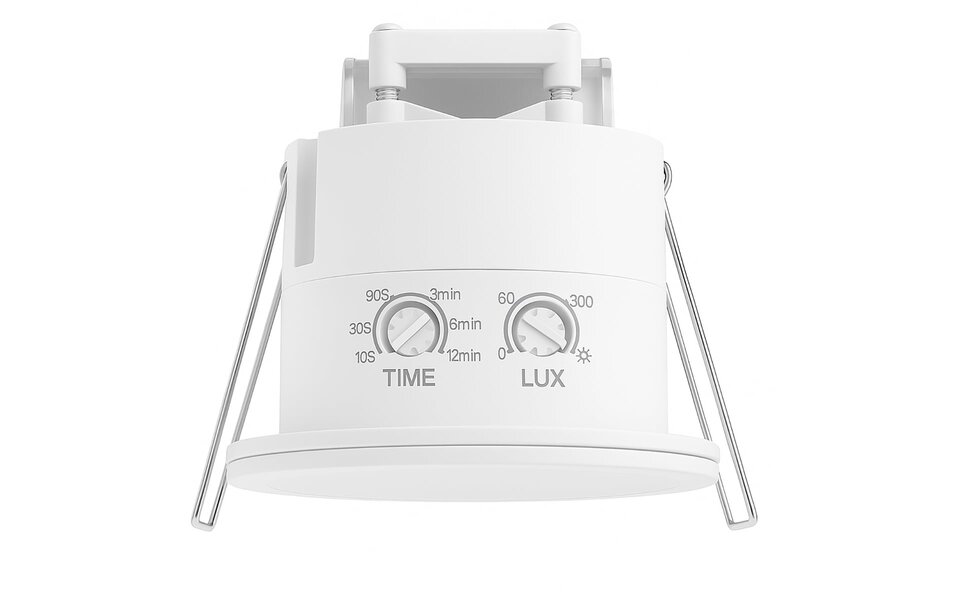

Flexible settings for optimal use
